Technical data

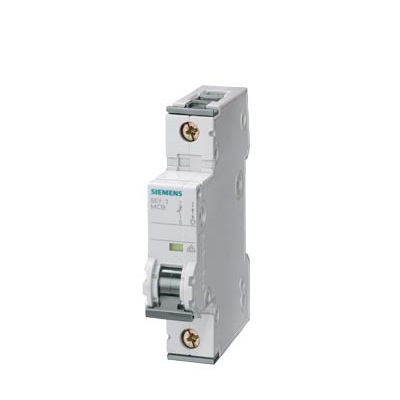

Mini Circuit breaker 220V DC 10kA, 1 pole, C, 16A
Product brand name SENTRON
Product name Circuit breaker
Product specifications Machinery manufacturing/industry
General technical data
Pole number 1
Electrode size 1P
Trip feature Level C
Overpressure Class III
Pollution level 3
voltage
Voltage Type Operating voltage DC
Insulation voltage (Ui)
● DC test value 250 V
Supply voltage
Supply voltage
● DC measured value 220 V
When the working voltage is DC, the maximum measured value is 250 V
Protection class
Protection level IP IP20, with connection conductor
Exchange capacity
Current breaking capacity
● DC in accordance with IEC 60947-2 test value of 10 kA
Electric power
Working current
● 16 A at 35 °C
● 14.91 A at 40 °C
● At 45 ℃, the measured value is 14.34A
● 13.73A at 50°C
● At 55 ℃, the measured value is 13.1 A
Suitability for use in machinery manufacturing/industry
Product details
Product component
● The upper combination terminal is
● Lower combination terminal is
● Can be cut off together the neutral line
Product characteristics
● Comply with EN 60204-1 main switch characteristics no
● Halogen-free is
● It can be sealed
● Silicon-free Yes
The product extension can be installed with auxiliary devices
connection
Connected wire section of a single core wire
● Minimum 0.75mm ²
● Maximum 35 mm²
Multicore wire with jointable traverse section
● Minimum 0.75mm ²
● Maximum 35 mm²
Jointable wire section fine core wire with cable end machining
● Minimum 0.75mm ²
● Maximum value: 25 mm²
Tighten the torque [lbf·in] bolt connection
● Minimum 22 lbf·in
● Maximum 31 lbf·in
Tighten the torque bolt connection
● Minimum value 2.5N ·m
● Maximum value 3.5N ·m
Position Pay attention to the polarity of the power cable
Mechanical design
Height 90 mm
Width 18 mm
Depth 76 mm
The installation depth is 70 mm
The number of width-allocated cells 1
Fastening Type Quick fastening system
Load at any location
The net weight is 140 g
Environmental conditions
Ambient temperatures affect a maximum of 95% to 55°C, 55% to 70°C, and 35% to 75°C
Seismic strength in accordance with IEC 60068-2-6 5 to 25Hz ±1mm; 25Hz to 150Hz 50m/s²
Ambient temperature During operation
● Minimum value -25 °C
● Maximum 55 °C
Ambient temperature Storage period
● Minimum value -40 °C
● Maximum 75 °C
Number of test cycles applicable to environmental testing according to IEC 60068-2-30 28
