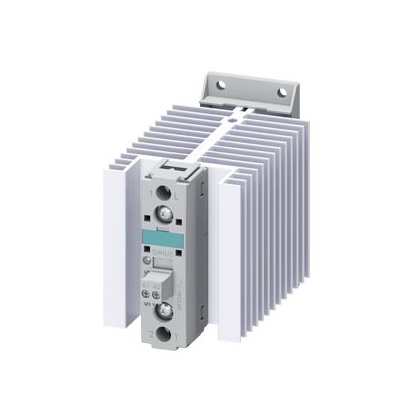

Siemens solid state relay, ** large load current 40 A, ** large load voltage 460 V DIN rail installation, contact configuration single-pole normally open
Model feature introduction
The 3RF23 series
The complete set contains solid state relays and optimized heat fins for IP20 grade thermal conductivity high efficiency thyratron transistors optimized through DCB technology, with high reverse voltage screw connections providing fast, simple connections for insulation voltage 600V AC frequency 50/60Hz can be mounted DIN
Zero voltage relay
Injection temperature can affect current rating; Please look up the possible derates in the data sheet.
Model parameter introduction
Attribute value
** Small load current 0.5A
** Large load current 40A
Range SiriusClassic
Installation type DINRail
** Small load voltage 48V
** Large load voltage 460V
** Minimum control voltage 15Vdc
Maximum control voltage 24Vdc
Toggle type zero cross
Contact configuration unipolar normally open
Terminal type screw
Output device thyratron transistor
** Long opening time 1 (+1/2 cycle) ms
The dimensions are 67.5x156x100mm
** High operating temperature +60°C
The depth is 156mm
The length is 67.5mm
Control voltage range 15→24Vdc
Operating temperature range -25→+60°C
Load voltage range 48→460V
Turn off leakage current 10mA
Height 100mm
** Low operating temperature -25°C
