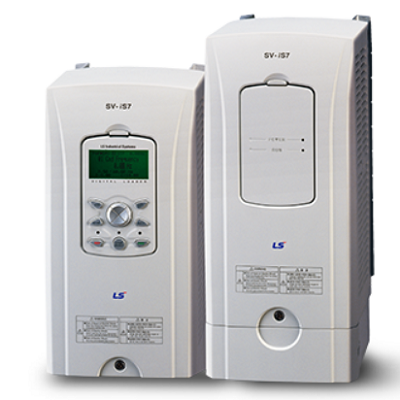

LS inverter, the full name of LS AC variable frequency governor, by providing a variety of application configurations, the direct current into alternating current, and by changing the voltage and frequency of the ordinary power input to control the speed of the motor, to meet different industrial needs, so as to realize the energy saving and environmental protection of the automation system. IGX is a sensorless vector controlled frequency converter based on IG5A. It has better low-speed torque characteristics, IP protection and application functions, and has been carefully improved from appearance, structure, heat dissipation, circuit design, software and many other aspects to improve the reliability and ease of use of the product to further meet the requirements of customers in different applications.
Main function
1, V/F control and improved automatic torque compensation: do not need too much setting and test case automatically obtain in line with the application of the V/F curve South Korea LS inverter |SV2800IS7-4SO
2, no vector sensor control: through sensorless vector control can obtain better dynamic characteristics and low frequency torque characteristics
3, parameter self-tuning: optimize sensorless vector control and V/F torque automatic boost control characteristics
4, built-in RS485 communication: built-in RS-485 interface, support LSLG-BUS protocol and MODBUS
5, up/down function: three UP/DOWN control modes can be defined, and the current frequency can be saved as the initial value of UP/DOWN Korea LS power converter |SV2800IS7-4SOD
6, PID control: there are two working modes, ordinary PID control and process PID control, which is convenient for users to choose the appropriate PID control mode for different work occasions. Both sleep and wake functions are available to save energy
7, external (mechanical) lock control: the opening and closing control of the external lock is used to start and stop the lifting equipment
8. Kinetic energy buffer: The inverter can continue to work in the case of sudden power drop or instantaneous power failure
iS7 Series Sensorless Vector Inverter [Constant torque]- available in the following models
SV0008IS7-4NO Power 0.75KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0015IS7-4NO Power 1.5KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0022IS7-4NO Power 2.2KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0037IS7-4NO Power 3.7KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0055IS7-4NO Power 5.5KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0075IS7-4NO Power 7.5KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0110IS7-4NO Power 11KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0150IS7-4NO Power 15KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0185IS7-4NO Power 18.5KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0220IS7-4NO Power 22KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0300IS7-4NO Power 30KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0370IS7-4NO Power 37KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0450IS7-4NO Power 45KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0550IS7-4NO Power 55KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0750IS7-4NO Power 75KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0900IS7-4SOD Power 90KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV1100IS7-4SOD Power 110KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV1320IS7-4SOD Power 132KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV1600IS7-4SOD Power 160KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV1850IS7-4SOD Power 185KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV2200IS7-4SOD Power 220KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV2800IS7-4SO Power 280KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV3150IS7-4SO Power 315KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV3750IS7-4SO Power 375KW (Input :3 phase 380V/ Output :3 phase 0~380V)
