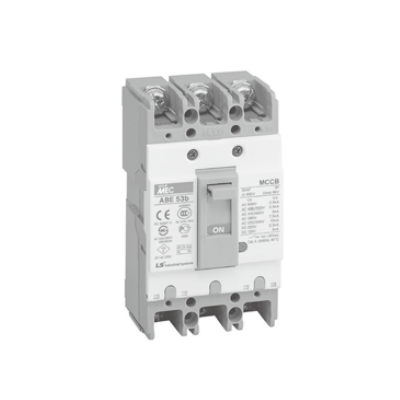

LS Power generation MCCB Product Parameter Model ABS 33B Basic parameters Rated current 5A, 10A, 15A, 20A, 30A, 40A, 50A Rated working voltage 600 V Mechanical life 8500 times Rated frequency 50-60Hz Rated insulation voltage (Ui) 690 V Other parameters Ordering Instructions and other catalog number Product certification CE, KEMA, LIoyd,CCC specification ABS 33B Release type (trip characteristic type) Thermal magnetic type (ABH type); Piezomagnetic type (ABE/ABS type) is compact in size, economical and practical, and the breaking ability has been greatly improved compared with before; Non-adjustable thermomagnetic release; With a hard engineering plastic housing; The three-stage leakage circuit breaker has the same size as the distribution circuit breaker; Provide a variety of accessories such as board rear wiring and rotating handle
1. Use and scope of application
MCCB (ABE) series plastic shell type circuit breaker (hereinafter referred to as circuit breaker), is one of the new circuit breakers developed by Korea LS Power Production Company using international advanced design and manufacturing technology, according to its rated limit short-circuit breaking capacity (lcu), divided into ABE type (economic), ABS type (standard). The product has the characteristics of small size, high breaking, short fly-arc (zero fly-arc in some specifications), anti-vibration, and is an ideal product for land and ship trials. Suitable for AC 50Hz, rated insulation voltage 690V and below, rated working voltage 415V circuit for line conversion and motor infrequent start. The circuit breaker has the function of overload, short circuit and undervoltage protection, which can protect the line and power equipment from damage.
LS generation circuit breaker can be installed vertically (that is, vertically installed), can also be installed horizontally (that is, horizontally installed).
This product standard: comply with GB14048.2
2. Normal working environment
1.
Altitude 2000m and below;
2.
The ambient medium temperature is not higher than + 40 ° C (+45 ° C for Marine products) and not lower than -5 ° C;
3, can withstand the influence of humid air;
4.
Resistant to the effects of salt spray and oil spray;
5, can withstand the influence of mold;
6, the maximum inclination is 5°;
7.
Can work reliably under normal vibration of the ship;
8, in the medium without explosion risk, and the medium is not enough to corrode metal and destroy insulation gas and conductive dust;
9.
Where there is no rain or snow.
The following is the LS generation of the full series of plastic-case circuit breaker model and price list:
LG(LS)ABE series Plastic-case Circuit breaker (Economy type)
ABE 52b ABE
53b ABE 62b ABE 63b
ABE 102b ABE 103b ABE 104b ABE 202b
ABE 203b ABE 204b
ABE 402b ABE 403b
ABE 404b ABE
602b ABE 603b ABE 604b
ABE 802b ABE 803b ABE
804b
