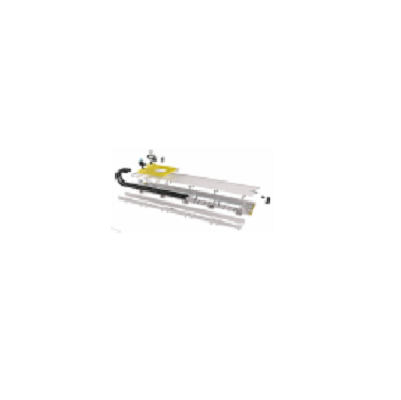

Gongboshi Robot ground rail GMS-01-01-W3000
1: The material of the track body is welding parts, and after the welding is completed, the temper stress is removed and then the gantry finishing is carried out
2: The splicing length is more than 15 meters by the third party laser level detection, accuracy data
3: The track body is the surface of the steel after annealing and stress relief after shot blasting and then machining the linear guide rail, rack and splicing mounting surface.
4: The connection between the track and the ground connecting plate can be adjusted horizontally, and the ground connecting plate is fixed by the M16 expansion bolt.
5: The material of the robot installation plate is 45# steel, and the thickened steel plate in the bolted connection position ensures that the thread is fastened.
6: The drag chain is installed on the outside of the track or inside the test, fixed by the drag chain groove and bracket, bending radius R250 to reduce the vulnerability of the cable, such as the length of more than 8 meters need to add a roller bracket.
7: The hard limit is installed at both ends of the track, and the material is Q235 steel and elastic buffer.
8: The limit switch is installed on the robot movement plate, and the limit mode is contact type
9: The surface treatment of the equipment is spray paint, the color is RAL 7036 dark gray
10. Sheet metal dust cover (semi-closed) 3mm pattern plate bending screw is connected to the organ type fully closed dust cover
11: Lubrication system imported lubrication pump shunt lubrication slider, rack lubrication with felt wheel
12: The origin mark is installed on the robot motion board, and the scale is installed on both sides of the track.
13: Linear guide horizontal installation, slider for 4 centralized oil supply by the lubrication system
14: rack and pinion grinding grade for helical teeth;
Rated load of motion plate 800kg
Acceleration 1200mm/S
Operating speed 1000mm/s
Deceleration ratio 1:10
Repeated positioning accuracy ±0.1
The robot arm span is less than 2000mm
Mounting mode horizontal
Drive mode 1 axis
Power supply conditions Three-phase 380V±10/50 Hz
Insulation Class H
