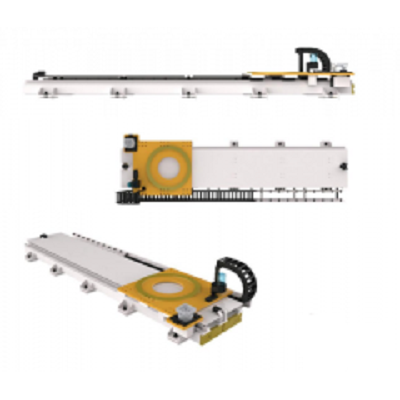

Robot guide rail - GMS-01-01-W1200 - Bearing capacity 1200 kg
1: The material of the track body is welding parts, standard length splicing parts, the length is divided into 6 meters, 5 meters, 4 meters, 3 meters, 2 meters, 1.5 meters five kinds of gauges can be spliced
2: The splicing length is more than 15 meters by the third party laser level detection, accuracy data
3: The track body is the surface of the steel after annealing and stress relief after shot blasting and then machining the linear guide rail, rack and splicing mounting surface.
4: The connection between the track and the ground connecting plate can be adjusted horizontally, and the ground connecting plate is fixed by M16 chemical bolts.
5: The material of the robot installation plate is 45# steel, and the thickened steel plate in the bolted connection position ensures that the thread is fastened.
6: The drag chain is installed on the outside of the track or inside the test, fixed by the drag chain groove and bracket, bending radius R250 to reduce the vulnerability of the cable, such as the length of more than 8 meters need to add a roller bracket.
7: The hard limit is installed at both ends of the track, and the material is Q235 steel and elastic buffer.
8: The limit switch is installed on the robot movement plate, and the limit mode is contact type.
9: The surface treatment of the equipment is spray paint, the color is RAL 7036 dark gray
10. Sheet metal dust cover (semi-closed) 3mm pattern plate bending screw is connected to the organ type fully closed dust cover
11: Lubrication system imported lubrication pump shunt lubrication slider, rack lubrication with felt wheel
12: The origin mark is installed on the robot motion board, and the scale is installed on both sides of the track.
13: Linear guide horizontal installation, slider for 4 centralized oil supply by the lubrication system
14: The rack and pinion is the four-sided grinding grade of the helical teeth
