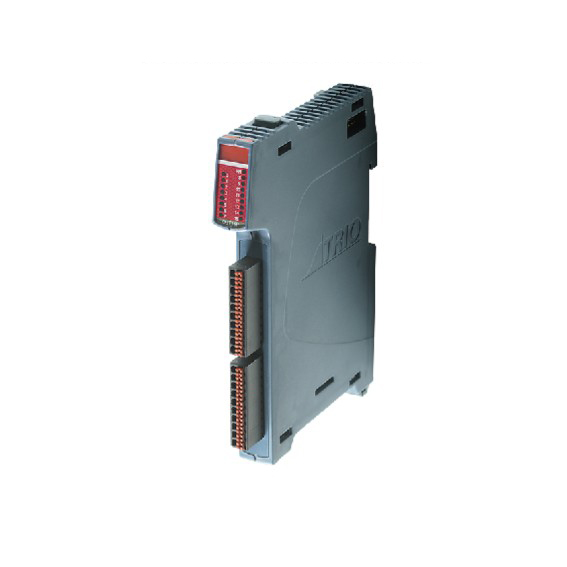

ESTUN 16 channel NPN output EtherCAT I/O module P376
Product features:
The P376 digital output module connects the binary control signal of the controller to mechanical output devices such as relays, connectors, valves, lamps, etc. (24V DC).
All 16 outputs are current absorbing (NPN) and have electrical insulation.
Both the output and power connections are connected through two single row plug-in screw terminals.
The Flexslice module displays the output signal status through LED lights.
Product parameters:
Module current consumption (EBUS5V)
Maximum 110mA
Number of digital outputs
16 (2 sets of 8-way outputs)
Required power supply
24V (+/-20%) DC
Load type
Resistance, inductance, capacitance
"Open" voltage threshold
75us (90% to 10%)
"Off" voltage threshold
105us (10% to 90%)
Maximum output current
0.5A per channel, 8 channels per group, with an output of 4A
Short circuit protection
Output 3A per channel
Overvoltage/reverse voltage protection
support
Installation method
DIN-Rail Mounting
Dimensions (width, depth, height)
millimeter
15x147 × 107
weight
145g
connector
Plug and play wiring terminals
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
