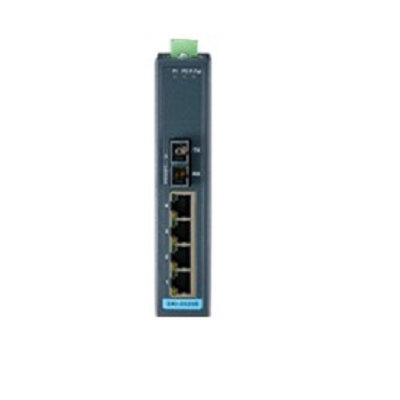

Advantech EKI-2525M SC Multi-mode Fiber Optic Port non-network management Industrial Ethernet switch is an industrial grade Ethernet switch that can quickly and economically expand your industrial network. The EKI-2525M has four 10/100Mbps Ethernet ports, and the EKI-2525M provides one or two multi-mode optical fiber ports for data transmission up to 30km. The EKI-2525M has an industrial design to ensure high reliability and stability in harsh application environments, creating a reliable communication link between the field equipment and the backbone fiber network.
Product characteristics
Offers four 10/100Mbps Ethernet ports with RJ-45 connectors
Provides one 100Mbps multi-mode SC fiber port
Supports full-duplex/half-duplex flow control
MDI/MDI-X automatic bonding is supported
Provides broadcast storm protection
Provide flexible installation: DIN rail installation, panel installation
Product parameter
voltage
Power connector type: 6-pin detachable screw terminal
Energy consumption: 5 watts
Power input (DC) : 12 -- 48 VDC
Redundant double input: Yes
protection
Overload current and reverse polarity
environment
Temperature (** high operating temperature) : 60°C
Temperature (** low operation) : -10°C
Temperature (operating range) : -10 -- 60°C
Temperature (storage range) : -40 -- 85°C
mechanism
Dimensions (W x H x D) : 37 x 140 x 95 mm
Intellectual property rating: IP30
